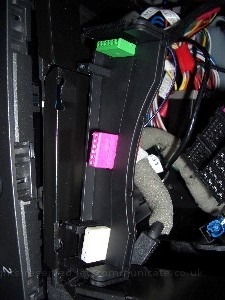

  v5irlightsensorfit1.jpg - To install the IR / Light sensor I had to create some space for the cable. There was a plastic holder which was removable for some of the incar wiring. I simpley removed it, then using a dremel created a channel for the cable and then refitted with the cabel already passed through. Once the moddified blanker was replaced it gave an OEM feel although this was not the initial design I was happy with it
v5irlightsensorfit2
v5irlightsensorfit3
v5irlightsensorfit4
doubledinscreenbuild20
v5sot122

To install the IR / Light sensor I had to create some space for the cable. There was a plastic holder which was removable for some of the incar wiring. I simpley removed it, then using a dremel created a channel for the cable and then refitted with the cabel already passed through. Once the moddified blanker was replaced it gave an OEM feel although this was not the initial design I was happy with it
